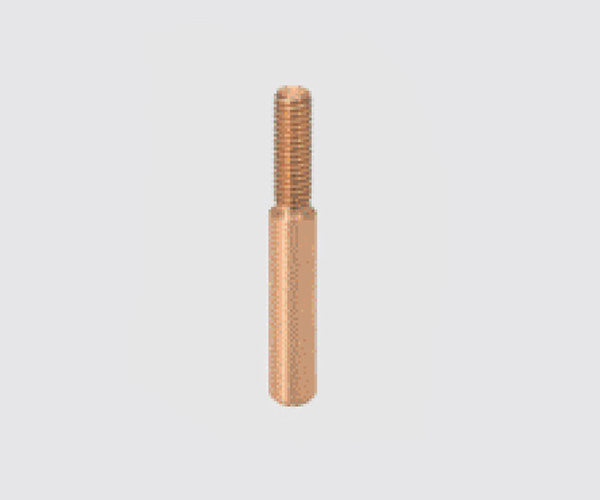

DTTB
Category: Electrodes & Chuck | HSN: 84807900
Download Drawing
Availability:
In Stock
Highlights & Specifications:
Tips:
The diameter (d) is smaller than the screw size (M). Insert an undersized tapping electrode in the low screw hole, and perform electro discharge machining while rocking electrode in the X and Y directions.
- Swing amount=M-d-0.1(Target).
Clearance for electrical discharge on one side 0.1-0.5.
Features:
- Has a through hole for water circulation, that enables higher processing speed and helps reduce secondary electric discharge.
