DTPNA

Category: Ejector Series   |   HSN: 84807900

Download Drawing
Availability: In Stock
Highlights & Specifications:

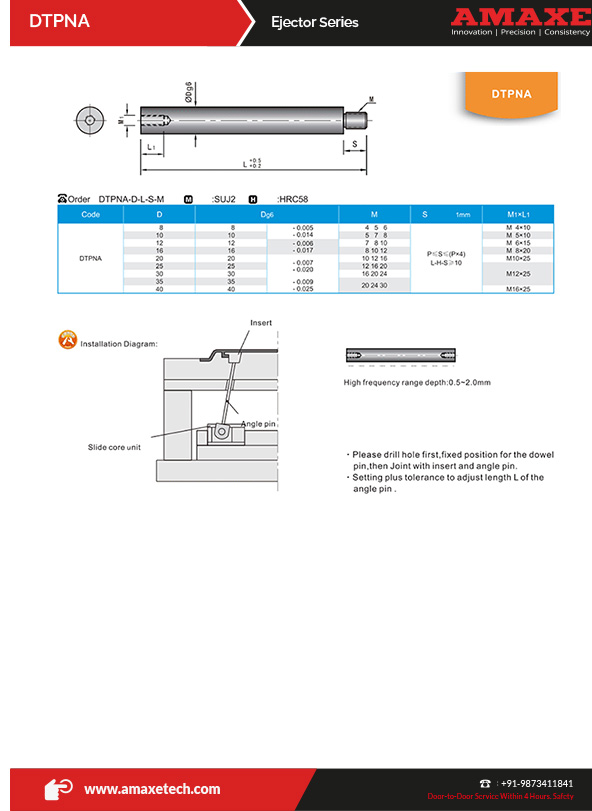

Please drill hole first, fixed position for the dowel pin, then Joint with insert and angle pin.

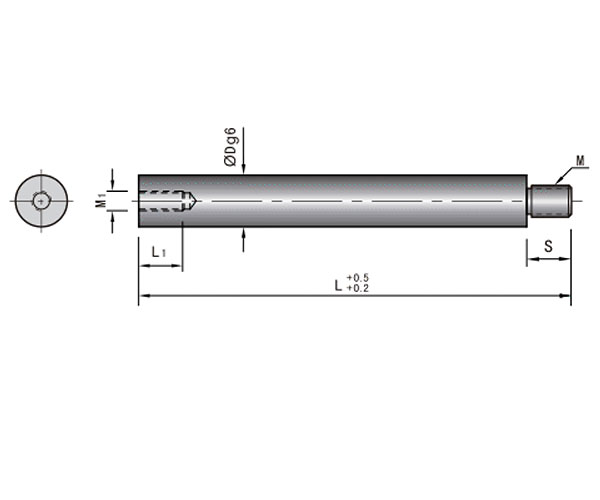

Setting plus tolerance to adjust length L of the angle pin
