DTPF
Category: Ejector Series | HSN: 84807900

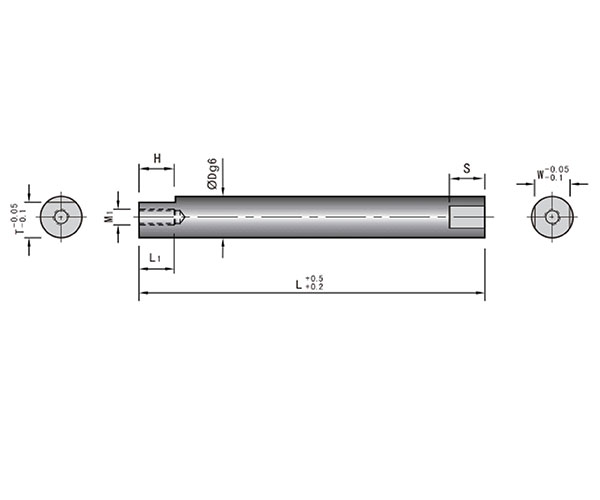

Download Drawing
Availability:
In Stock
Highlights & Specifications:
|
Code |
D |
Dg6 |
T |
H |
W |
S 1mm |
M1*L1 |
|
|

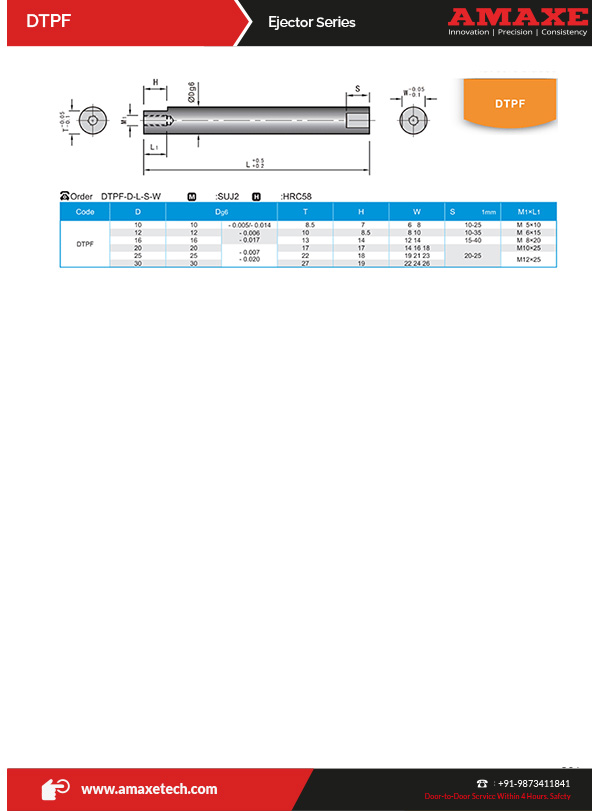

DTPF
|
10 |
10 |
-0.005-0.014 |
8.5 |
7 |
6 8 |
10-25 |
M 5*10 |
|
12 |
12 |
-0.006 -0.017 |
10 |
8.5 |
8 10 |
10-35 |
M 6*15 |
|
|
16 |
16 |
13 |
14 |
12 14 |
15-40 |
M8*20 |
||
|
20 |
20 |
-0.007 -0.02 |
17 |
17 |
14 16 18 |
20-25 |
M10*25 |
|
|
25 |
25 |
22 |
18 |
1921 23 |
M12*25 |
|||
|
30 |
30 |
27 |
19 |
22 24 26 |
||||
