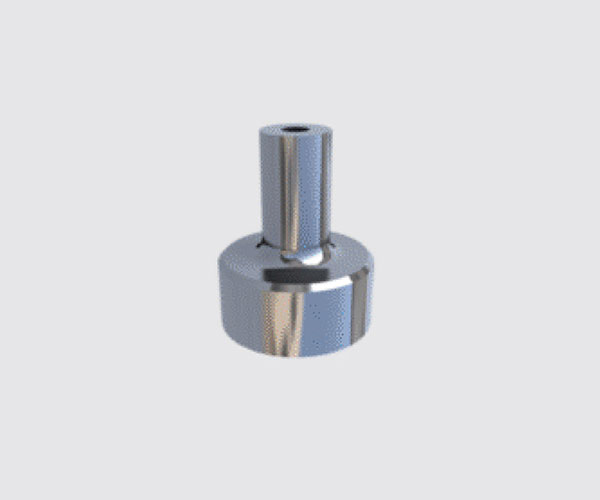

ZZ511-1
Category: Pouring Gate Series | HSN: 84807900

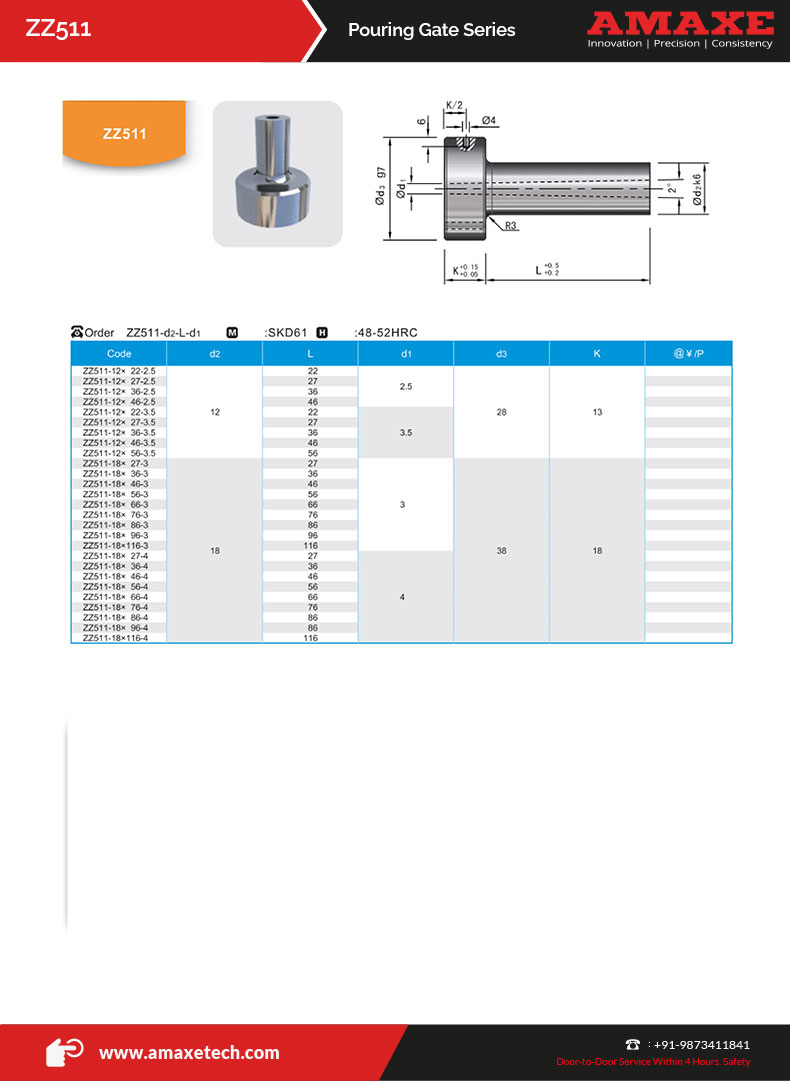

Download Drawing
Availability:
In Stock
Highlights & Specifications:
|
Code |
d2 |
L |
d1 |
d3 |
K |
@¥ / P |
|
ZZ511-12x 22-2.5 |
12
|
22 |
2.5
|
28
|
13
|
|
|
ZZ511-12x 27-2.5 |
27 |
|
||||
|
ZZ511-12X— 36-2.5 |
36 |
|
||||
|
ZZ511-12x 46-2.5 |
46 |
|
||||
|
ZZ511-12X— 22-3.5 |
22 |
3.5
|
|
|||
|
ZZ511-12x 27-3.5 |
27 |
|
||||
|
ZZ511-12X— 36-3.5 |
36 |
|
||||
|
ZZ511-12X— 46-3.5 |
46 |
|
||||
|
ZZ511-12x 56-3.5 |
56 |
|
||||
|
ZZ511-18x 27-3 |
18
|
27 |
3
|
38
|
18
|
|
|
ZZ511-18X— 36-3 |
36 |
|
||||
|
ZZ511-18x 46-3 |
46 |
|
||||
|
ZZ511-18x 56-3 |
56 |
|
||||
|
ZZ511-18X— 66-3 |
66 |
|
||||
|
ZZ511-18x 76-3 |
76 |
|
||||
|
ZZ511-18x 86-3 |
86 |
|
||||
|
ZZ511-18x 96-3 |
96 |
|
||||
|
ZZ511-18x116-3 |
116 |
|
||||
|
ZZ511-18x 27-4 |
27 |
4
|
|
|||
|
ZZ511-18x 36-4 |
36 |
|
||||
|
ZZ511-18x 46-4 |
46 |
|
||||
|
22511-18x 56-4 |
56 |
|
||||
|
ZZ511-18X— 66-4 |
66 |
|
||||
|
ZZ511-18x 76-4 |
76 |
|
||||
|
22511-18x 86-4 |
86 |
|
||||
|
ZZ511-18x 96-4 |
86 |
|
||||
|
ZZ511-18x116-4 |
116 |
|
