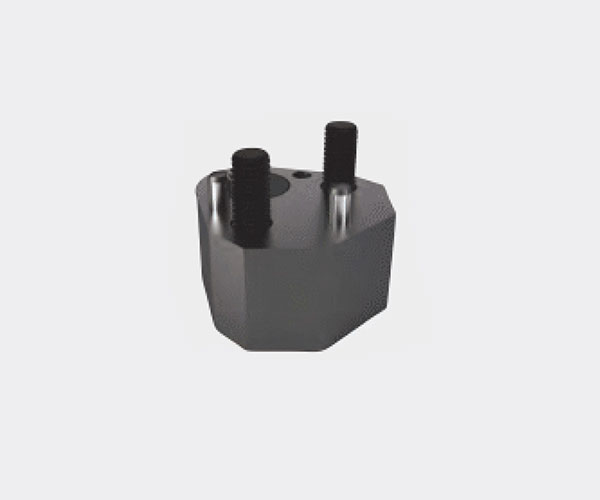

W2664.06.
Category: Punch Retaining Block | HSN: 84807900
Download Drawing
Availability:
In Stock
|
Catalog No. |
d |
D1 |
D2 |
D4 |
a |
a1 |
a3 |
a4 |
b |
e1 |
e2 |
e3 |
ek |
t |
r1 |
r2 |
X |
|
2664.06.10 |
9 |
15 |
10 |
6 |
44.5 |
19 |
11.1 |
10 |
43.7 |
7.5 |
26.925 |
9 |
10 |
9 |
9.5 |
12 |
9.8 |
|
2664.06.13 |
9 |
15 |
13 |
6 |
50.8 |
19 |
14.3 |
12 |
50 |
6.5 |
29.97 |
12 |
12 |
9 |
12.7 |
15.2 |
11.3 |
|
2664.06.16 |
9 |
15 |
16 |
6 |
54 |
19 |
15.9 |
13 |
53.2 |
6 |
31.75 |
13.5 |
12 |
9 |
14.3 |
16.8 |
|
|
2664.06.20 |
11 |
18 |
20 |
6 |
60.3 |
19 |
17.5 |
14 |
59.5 |
5 |
33.53 |
16.5 |
12 |
11 |
17.5 |
20 |
14.8 |
|
|
13.5 |
20 |
25 |
6 |
66.9 |
23.8 |
19.8 |
16 |
69.1 |
7 |
40 64 |
22 |
12 |
13.5 |
22.2 |
24.7 |
17.3 |
|
2664.06.32 |
13.5 |
20 |
32 |
6 |
66.9 |
23.8 |
19.8 |
16 |
69.1 |
7 |
40.64 |
22 |
12 |
13.5 |
22.2 |
247 |
20.8 |
|
2664.06.40 |
13.5 |
20 |
38 |
6 |
77 .4 |
27 |
24 |
18 |
76.6 |
10 |
43.993 |
26 |
12 |
13.5 |
26 |
28.5 |
24.8 |
