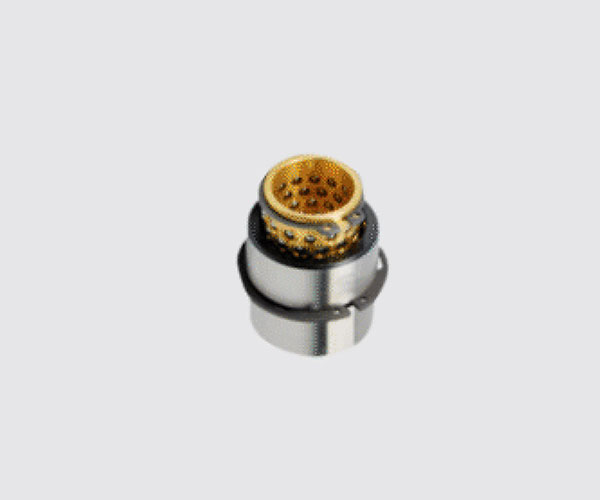

SSN1777SR
Category: Guide Pins & Guide Bush Series | HSN: 84807900
Download Drawing
Availability:
In Stock

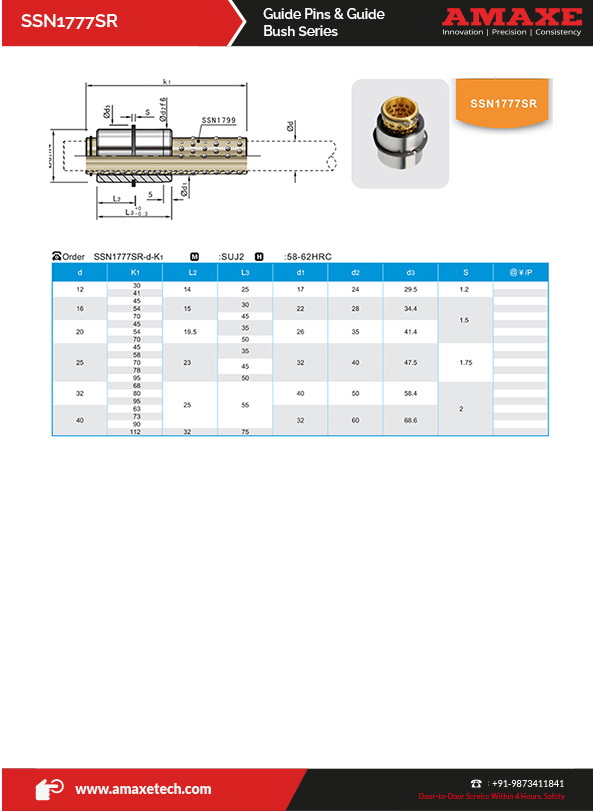

Highlights & Specifications:
|
d |
K1 |
L2 |
L3 |
d1 |
d2 |
d3 |
S |
@¥/P |
|
12 |
30 41 |
14 |
25 |
17 |
24 |
29.5 |
1.2 |
|
|
16 |
45 |
15 |
30 |
22 |
28 |
34.4 |
|
|
|
|
70 |
45 |
|
|
||||
|
20 |
45 |
19.5 |
35 |
26 |
35 |
41.4 |
1.5 |
|
|
|
45 58 |
23
|
35 |
32 |
40 8 |
47.5 |
1.75 |
|
|
25 |
70 78 |
45 |
|
|||||
|
32 |
68 80 95 |
25 |
55 |
40 |
50 |
58.4 |
|
|
|
40 |
63 73 90 |
32 |
75 |
32 |
60 |
68.6 |
2 |
|
