RRHTBF RRHTGF
Category: Pouring Gate Series | HSN: 84807900

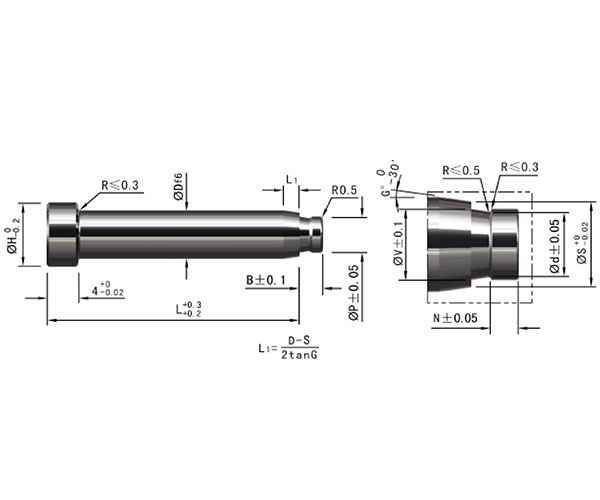

Download Drawing
Availability:
In Stock
Highlights & Specifications:
|
Code |
D |
H |
0.1mm |
||||||
|
B |
N |
S |
G |
P |
d |
V |
|||
|
RRHTBF |
4 |
6 |
1.8-3.8 |
0.5-1.5 |
3-3.9 |
5-10
|
1.5-3.9 |
1 -3.4 |
d ≤ V < S |
|
5 |
7 |
3.5-4.9 |
1.7-4.9 |
1.2-4.4 |
|||||
|
6 |
8 |
2.3-4.5 |
0.8-2.3 |
4-5.9 |
2 -5.9 |
1.5-5.4 |
|||
|
8 |
10 |
3 6 |
13 |
6-7.9 |
2.5-7.9 |
2 -7.4 |
|||
|
10 |
13 |
3.8-7.5 |
1.3-3.8 |
8-9.9 |
3 -9.9 |
2.5-9.4 |
|||
