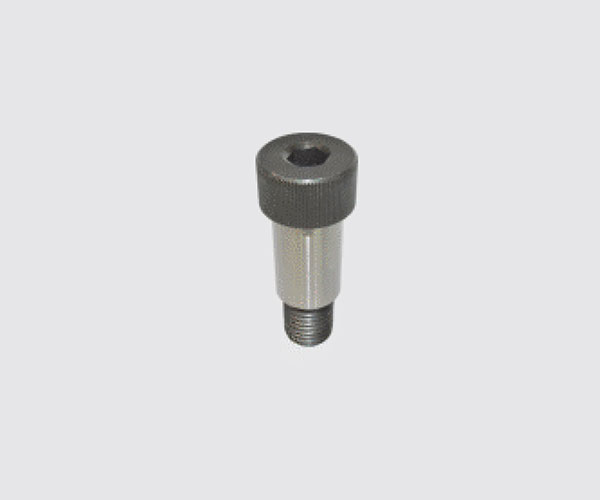

DTBL
Category: Mould Accessories Series | HSN: 84807900

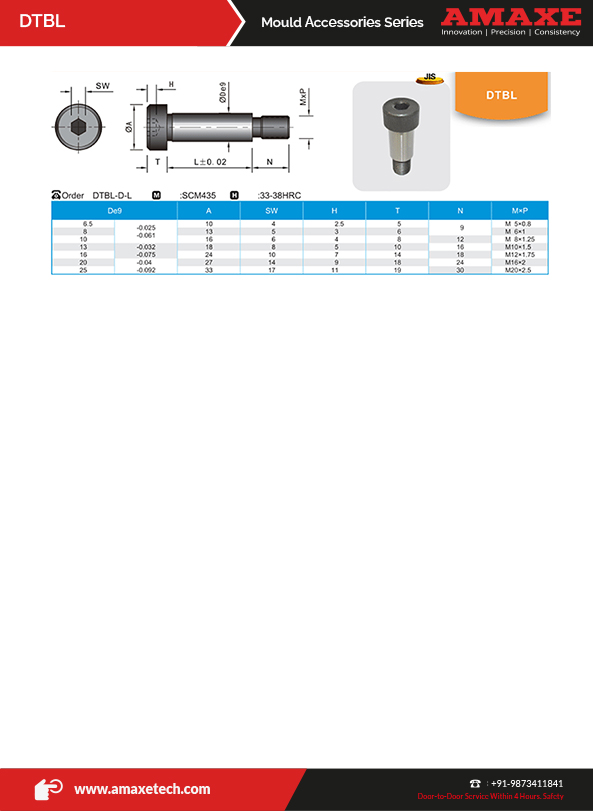

Download Drawing
Availability:
In Stock
Highlights & Specifications:
|
|
De9 |
A |
SW |
H |
T |
N |
MxP |
|
65 |
-0.03 |
10 |
4 |
25 |
5 |
9 |
M 5*0.8 |
|
8 |
-0.03 |
13 |
5 |
3 |
6 |
9 |
M6*1 |
|
10 |
-0 |
16 |
G |
4 |
8 |
12 |
M8*125 |
|
13 |
-0 |
18 |
8 |
5 |
10 |
16 |
M10*1.5 |
|
16 |
-0.08 |
24 |
10 |
7 |
14 |
18 |
M12*1.75 |
|
20 |
-0.04 |
27 |
14 |
9 |
18 |
24 |
M16*2 |
|
25 |
92 |
33 |
17 |
11 |
19 |
30 |
M20*25 |
